BICON 379TC Series Sirius Stainless Steel Trefoil Cable Cleats | BICON Trefoil Cleat

BICON-Prysmian-379TC-Series-Sirius-Trefoil-Cable-CleatsSirius Cleat
379 Series


• Suitable for use with cable diameters 23 to 128mm.
• Single or double bolt fixing.
• Operating temperatures -40°C to +120°C.
• Ergonomic design allows easy installation, with single tool tightening from the top side.
• Manufactured from non-magnetic, corrosion resistant 316L stainless steel.
• Liners are made from LSOH materials.
• Suitable for single core cables laid in trefoil formation with high fault current requirements.
• Suitable for standard and LSOH cable sheaths.
• Can be used in harsh environments.
• Suitable for use with all standard ladder and tray systems.
• Complies with IEC 61914:2009.


BICON-Prysmian-379TC-Series-Sirius-Trefoil-Cable-CleatsPrysmian Group and BICON*Technical data subject to change without notice







Cleat Selection
BICON 379TC01 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER23-28 Emperor Trefoil Cable Cleat^
BICON 379TC02 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER27-32 Emperor Trefoil Cable Cleat^
BICON 379TC03 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER30-35 Emperor Trefoil Cable Cleat^
BICON 379TC04 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER33-38 Emperor Trefoil Cable Cleat^
BICON 379TC05 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER36-42 Emperor Trefoil Cable Cleat^
BICON 379TC06 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER40-46 Emperor Trefoil Cable Cleat^
BICON 379TC07 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER44-50 Emperor Trefoil Cable Cleat^
BICON 379TC08 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER48-55 Emperor Trefoil Cable Cleat^
BICON 379TC09 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER51-58 Emperor Trefoil Cable Cleat^
BICON 379TC10 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER55-62 Emperor Trefoil Cable Cleat^
BICON 379TC11 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER59-66 Emperor Trefoil Cable Cleat^
BICON 379TC12 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER63-70 Emperor Trefoil Cable Cleat^
BICON 379TC13 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER67-74 Emperor Trefoil Cable Cleat^
BICON 379TC14 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER71-78 Emperor Trefoil Cable Cleat^
BICON 379TC15 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER74-82 Emperor Trefoil Cable Cleat^
BICON 379TC16 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER77-85 Emperor Trefoil Cable Cleat^
BICON 379TC17 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER82-88 Emperor Trefoil Cable Cleat^
BICON 379TC18 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER88-96 Emperor Trefoil Cable Cleat^
BICON 379TC19 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER96-103 Emperor Trefoil Cable Cleat^
BICON 379TC20 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER103-111 Emperor Trefoil Cable Cleat^
BICON 379TC21 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER111-119 Emperor Trefoil Cable Cleat^
BICON 379TC22 Sirius Trefoil Cable Cleat (Stainless Steel Cable Cleats)
^Cable range equivalent to Ellis ER119-128 Emperor Trefoil Cable Cleat^

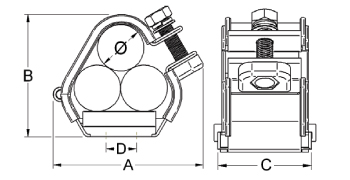

All cleats have a single central fixing hole for a 12mm diameter fixing bolt. Styles 02 to 22 can be also fixed with 2 x 10mm bolts - the 10mm clearance holes are positioned either side of the central hole with centres as per dimension D.
BICON-Prysmian-379TC-Series-Sirius-Cable-Cleat
Performance data
  Clause Classification
Type 6.1.3 Composite
Operating Temperature 6.2 -40 °C to +120°C
Impact Resistance 6.3 V.Heavy
Needle Flame 10.1 >120secs

  Clause Classification
Resistance to Short Circuit 6.4.3 (1Short Circuit)

6.4.4 (2 Short Circuits)
80kA rms, 175kA peak, Ø=36mm, Spacing=300mm

67.5kA rms, 146kA peak, Ø=36mm, Spacing=300mm
Corrosion 6.5.2 High, Outdoor - wet conditions

*Technical data subject to change without notice
