BICON Aluminium Claw Cleat 370BA Series

BICON-Prysmian-Aluminium-Claw-Cable-Cleat-370BA-SeriesClaw Cleat (Aluminium)
370 Series


• Suitable for use with cable diameters 10 to 51mm.
• Manufactured from aluminium alloy.
• Two-piece, single fixing design.
• Can be stacked to a maximum of three on one fixing.
• Operating temperature -60°C to +105°C.
• Can be used for all types of cable routes.
• Plain finish - for normal industrial areas or outdoor unpolluted areas.
• Epoxy coated versions available for harsher environments.
• Packing pieces to be used where required.
• LUL APR Product ID 1959.



LUL Approved, London Underground Approved



BICON-Prysmian-Aluminium-Claw-Cleat-370BA-SeriesPrysmian Group and BICON*Technical data subject to change without notice







Cable and Cleat Selection
Standard Epoxy Coated

BICON 370BA01 Aluminium Claw Cleat (Aluminium Cable Cleats) BICON 370BB01 Aluminium Epoxy Coated Claw Cleat (Aluminium Cable Cleats)

BICON 370BA02 Aluminium Claw Cleat (Aluminium Cable Cleats) BICON 370BB02 Aluminium Epoxy Coated Claw Cleat (Aluminium Cable Cleats)

BICON 370BA03 Aluminium Claw Cleat (Aluminium Cable Cleats) BICON 370BB03 Aluminium Epoxy Coated Claw Cleat (Aluminium Cable Cleats)

BICON 370BA04 Aluminium Claw Cleat (Aluminium Cable Cleats) BICON 370BB04 Aluminium Epoxy Coated Claw Cleat (Aluminium Cable Cleats)

BICON 370BA05 Aluminium Claw Cleat (Aluminium Cable Cleats) BICON 370BB05 Aluminium Epoxy Coated Claw Cleat (Aluminium Cable Cleats)

BICON 370BA06 Aluminium Claw Cleat (Aluminium Cable Cleats) BICON 370BB06 Aluminium Epoxy Coated Claw Cleat (Aluminium Cable Cleats)

BICON 370BA07 Aluminium Claw Cleat (Aluminium Cable Cleats) BICON 370BB07 Aluminium Epoxy Coated Claw Cleat (Aluminium Cable Cleats)

BICON 370BA08 Aluminium Claw Cleat (Aluminium Cable Cleats) BICON 370BB08 Aluminium Epoxy Coated Claw Cleat (Aluminium Cable Cleats)

BICON 370BA09 Aluminium Claw Cleat (Aluminium Cable Cleats) BICON 370BB09 Aluminium Epoxy Coated Claw Cleat (Aluminium Cable Cleats)


Method of Fixing
In all applications the cleats should be mounted on suitable M10 fixings. When mounting directly on channel, adaptor plate 380AG02 should be used. When stacking claw cleats use packing piece 389AC03 between cleats see here

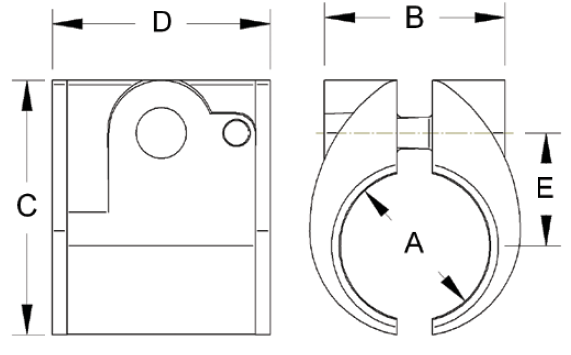

BICON-Prysmian-Aluminium-Claw-Cable-Cleat-370-BA-Series
Performance data
Test Standard EN 50368:2003
Type 6.1.1 Metallic
Impact Resistance 6.2.5 V. Heavy
Lateral Load 3.7 -> 8.2 kN
Axial Load 1.332 -> 5.855 kN
Needle Flame >120 secs

*Technical data subject to change without notice
