BICON Aluminium Orion Cable Cleat Shaped 376SR 376SE Series

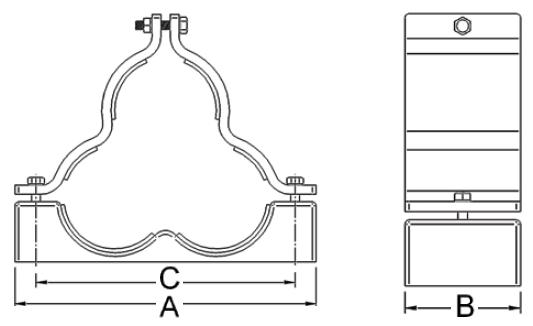

BICON-Prysmian-Aluminium-Orion-Cable-Cleat-Shaped-376SR-376SE-SeriesOrion Cleat - Shaped
376 Series















BICON-Prysmian-Aluminium-Orion-Cleat-Shaped-376SR-376SE-SeriesPrysmian Group and BICON*Technical data subject to change without notice







Cable and Cleat Selection
Standard  Epoxy Coated
BICON 376SR05 Orion Shaped Trefoil Cleat (Aluminium Cable Cleats) BICON 376SE05 Orion Shaped Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)

BICON 376SR06 Orion Shaped Trefoil Cleat (Aluminium Cable Cleats) BICON 376SE06 Orion Shaped Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)

BICON 376SR07 Orion Shaped Trefoil Cleat (Aluminium Cable Cleats) BICON 376SE07 Orion Shaped Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)

BICON 376SR08 Orion Shaped Trefoil Cleat (Aluminium Cable Cleats) BICON 376SE08 Orion Shaped Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)

BICON 376SR09 Orion Shaped Trefoil Cleat (Aluminium Cable Cleats) BICON 376SE09 Orion Shaped Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)

BICON 376SR10 Orion Shaped Trefoil Cleat (Aluminium Cable Cleats) BICON 376SE10 Orion Shaped Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)

BICON 376SR11 Orion Shaped Trefoil Cleat (Aluminium Cable Cleats) BICON 376SE11 Orion Shaped Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)


BICON-Prysmian-Aluminium-Orion-Cable-Cleat-Shaped-376SR-376SE-Series
Performance data
  Clause Classifcation
Type  6.1.1  Composite
Operating Temperature  6.2  -40 °C to +105 °C
Impact Resistance 6.3  Heavy
Needle Flame 10.1  >120 secs

  Clause Classifcation
Resistance to Short Circuit  6.4.4 (2 short circuit)
(HV Cable used)
TR / TE 31kA rms, 80kA peak
SR / SE 63kA rms, 164kA peak
Corrosion  6.5.1  High, Outdoor - wet conditions (coating
required for marine locations)


*Technical data subject to change without notice
