BICON Telcleat 385AA Type

BICON-Prysmian-Telcleat-385AA-TypeTelcleat®
385 Series


• Suitable for use with cable diameters 10 to 51mm.
• Manufactured from Low Density Polythene.
• Overlapping self-adjusting ranges.
• Sunlight (UV) and weather resistant.
• One piece, single fixing design.
• Can be double stacked on a single fixing.
• Operating temperature -40°C to +60°C.
• Tested in accordance with BS EN 50368.



BICON-Prysmian-Telcleat-385AA-TypePrysmian Group and BICON*Technical data subject to change without notice







Cable and Cleat Selection
BICON 385AA01 Telcleat (Single Way Cable Cleat)

BICON 385AA02 Telcleat (Single Way Cable Cleat)

BICON 385AA03 Telcleat (Single Way Cable Cleat)

BICON 385AA04 Telcleat (Single Way Cable Cleat)

BICON 385AA05 Telcleat (Single Way Cable Cleat)

BICON 385AA06 Telcleat (Single Way Cable Cleat)

BICON 385AA07 Telcleat (Single Way Cable Cleat)

BICON 385AA08 Telcleat (Single Way Cable Cleat)


Method of Fixing
The cleat is opened up and placed around the cable so that the end of the cleat containing the slot will be in contact with the mounting surface, except for the 385AA01, which should be reversed to put the slot uppermost. In this case an M5 washer should be used to prevent the nut entering the slot of the cleat.

When mounting directly on channel section an adaptor plate should be used see here

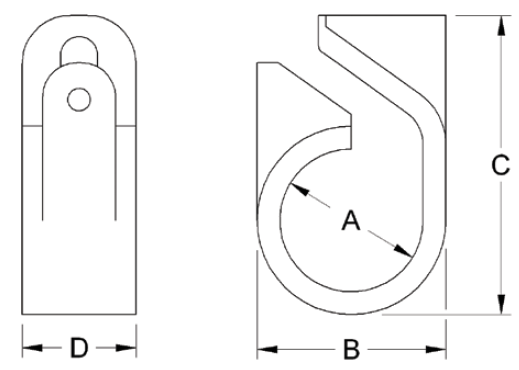

BICON-Prysmian-Telcleat-385AA-Type-Cable-Cleat
Performance data
Test Standard EN 50368:2003
Type 6.1.2 Non Metallic
Impact Resistance 6.2.4 Heavy -> 6.2.5 V. Heavy
Lateral Load 0.188 -> 0.775 kN
Axial Load 0.046 ->1.118 kN
Needle Flame >60 secs

*Technical data subject to change without notice
