Prysmian 382AA Series Ranger Cable Cleat | Prysmian Ranger Cleat

BICON-Prysmian-382AA-Series-Ranger-Cable-CleatRanger Cleat
382 Series


• Suitable for use with cable diameters of 13 to 76mm.
• Overlapping, self-adjusting ranges.
• Sunlight (UV) and weather resistant.
• Made from ABS which provides good oil and chemical resistance.
• Two piece, single bolt fixing.
• Double stacking facility.
• Operating temperature -20°C to +90°C.
• 'C' Section channel location aids fixing and stacking.
• Not designed for long vertical runs.


BICON-Prysmian-382AA-Series-Ranger-CleatPrysmian Group and BICON*Technical data subject to change without notice







Cleat Selection
Prysmian 382AA01 Ranger Cleat (Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

Prysmian 382AA02 Ranger Cleat (Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

Prysmian 382AA03 Ranger Cleat (Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

Prysmian 382AA04 Ranger Cleat (Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

Prysmian 382AA05 Ranger Cleat (Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

Prysmian 382AA06 Ranger Cleat (Non Metallic Cable Cleats | Non Magnetic Cable Cleats)


Method of Fixing
In all applications the cleat should be mounted on suitable M10 fixings. There is no need for any channel adaptor when mounting directly on to ‘C’ section channel.

SWL data based uponthe use of commerical grade 4.6 mild steel.

SWL = Safe Working Load.

FOS 2 = Values include a factor of safety of 2.

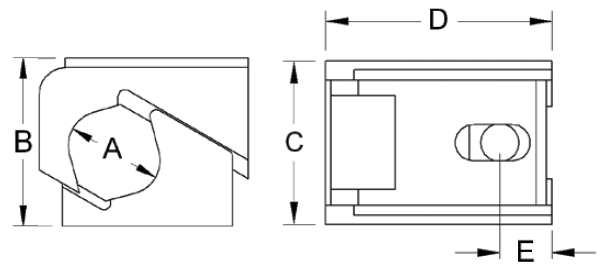

BICON-Prysmian-382-AA-Series-Ranger-Cable-Cleat

*Technical data subject to change without notice
