Prysmian 384AA Series Heavy Duty Hook Cable Cleat

BICON-Prysmian-384AA-Series-Heavy-Duty-Hook-Cable-CleatHeavy Duty Hook Cleat
384 Series


• Suitable for use with cables diameters 25 to 80mm.
• Manufactured from glass-filled nylon.
• Two-piece, single fixing design.
• Can be double stacked on a single fixing.
• Can be installed in temporary open position to aid single person working.
• All sizes secured with 10mm fixings.
• Operating temperature -25°C to +85°C.
• For normal industrial use Indoor and Outdoor.
• Fits most ladder and tray systems.
• Not designed to secure cables in long vertical routes.
• Tested in accordance with BS EN 50368.


BICON-Prysmian-384AA-Series-Heavy-Duty-Hook-CleatPrysmian Group and BICON*Technical data subject to change without notice







Cleat Selection
Prysmian 384AA01 Heavy Duty Hook Cleat (Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

Prysmian 384AA02 Heavy Duty Hook Cleat (Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

Prysmian 384AA03 Heavy Duty Hook Cleat (Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

Prysmian 384AA04 Heavy Duty Hook Cleat (Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

Prysmian 384AA05 Heavy Duty Hook Cleat (Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

Prysmian 384AA06 Heavy Duty Hook Cleat (Non Metallic Cable Cleats | Non Magnetic Cable Cleats)


Method of Fixing
In all applications the cleat should be mounted on suitable M10 fixings. There is no need for any channel adaptor when mounting directly on to ‘C’ section channel.

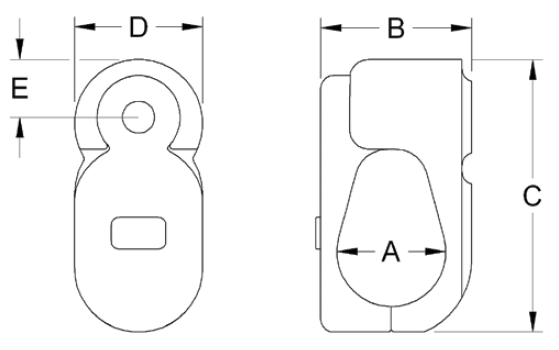

BICON-Prysmian-384-AA-Series-Heavy-Duty-Hook-Cable-Cleat
Performance data
Test Standard EN 50368:2003
Type 6.1.2 Non Metallic
Impact Resistance 6.2.4 Heavy -> 6.2.5 V. Heavy
Lateral Load 1.320 -> 1.5 kN
Axial Load 82 -> 109 N
Needle Flame >120 secs

*Technical data subject to change without notice
