Prysmian Afumex Two Bolt Cable Cleat 374 LSF Series

BICON-Prysmian-Afumex-Two-Bolt-Cable-Cleat-374LSF-SeriesAfumex Two Bolt Cleat
(LSOH) 374 Series


• Suitable for use with cable diameters 50 to 94mm.
• Manufactured from LSOH Polymer.
• Designed for use with Afumex LSOH and Saffire OHLS cables.
• Low Smoke and Zero Halogen.
• Sunlight (UV) and weather resistant.
• Two-piece, two fixing design.
• Can be double stacked on common fixings.
• Operating temperature -40°C to +60°C.
• Tested in accordance with BS EN 50368.
• LUL APR Product ID 1958.



LUL Approved, London Underground Approved



BICON-Prysmian-Afumex-Two-Bolt-Cleat-374LSF-SeriesPrysmian Group and BICON*Technical data subject to change without notice







Cable and Cleat Selection
Prysmian 374LSF01 Afumex Two Bolt LSOH Cable Cleat (2 Bolt | LSF | LSZH | Non Metallic | Non Magnetic)

Prysmian 374LSF02 Afumex Two Bolt LSOH Cable Cleat (2 Bolt | LSF | LSZH | Non Metallic | Non Magnetic)

Prysmian 374LSF03 Afumex Two Bolt LSOH Cable Cleat (2 Bolt | LSF | LSZH | Non Metallic | Non Magnetic)

Prysmian 374LSF04 Afumex Two Bolt LSOH Cable Cleat (2 Bolt | LSF | LSZH | Non Metallic | Non Magnetic)

Prysmian 374LSF05 Afumex Two Bolt LSOH Cable Cleat (2 Bolt | LSF | LSZH | Non Metallic | Non Magnetic)

Prysmian 374LSF06 Afumex Two Bolt LSOH Cable Cleat (2 Bolt | LSF | LSZH | Non Metallic | Non Magnetic)

Prysmian 374LSF07 Afumex Two Bolt LSOH Cable Cleat (2 Bolt | LSF | LSZH | Non Metallic | Non Magnetic)


Method of Fixing
In all applications the cleat should be mounted on suitable M10 fixings.
There is no need for any channel adaptor when mounting directly on to ‘C’ section channel.

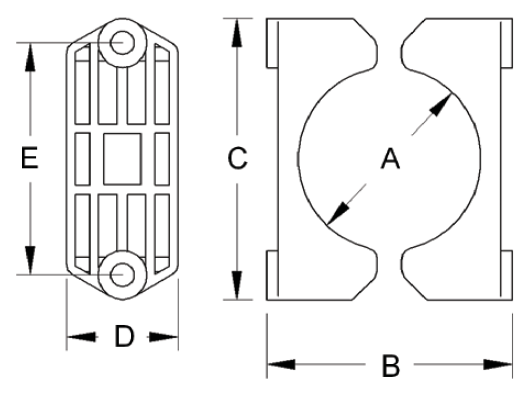

BICON-Prysmian-Afumex-Two-Bolt-Cable-Cleat-374-LSF-Series
Performance data
Test Standard EN 50368:2003
Type 6.1.2 Non Metallic
Impact Resistance 6.2.5 V. Heavy
Lateral Load 1.22 -> 3.485 kN
Axial Load 82 -> 110 N
Needle Flame >120 secs

*Technical data subject to change without notice
