Prysmian Aluminium Orion Cable Cleat 376TR 376TE Series

BICON-Prysmian-Aluminium-Orion-Cable-Cleat-376TR-376TE-SeriesOrion Cleat
376 Series


• Suitable for use with cable diameters 62-186mm.
• Manufactured from aluminium alloy.
• Suitable for use on LV, MV & HV cable designs.
• Single or two bolt fixing.
• Designed for use with larger diameter single core cables laid in trefoil formation.
• Deep section cast bases aid cable installation.
• Can be supplied with rubber liners.
• Profiled versions are available to meet specific design requirements.
• Tested in accordance with EN 50368:2003.



BICON-Prysmian-Aluminium-Orion-Cleat-376TR-376TE-SeriesPrysmian Group and BICON*Technical data subject to change without notice







Cable and Cleat Selection
Standard Epoxy Coated
Prysmian 376TR06 Orion Trefoil Cleat (Aluminium Cable Cleats) Prysmian 376TE06 Orion Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)
Prysmian 376TR07 Orion Trefoil Cleat (Aluminium Cable Cleats) Prysmian 376TE07 Orion Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)

Prysmian 376TR08 Orion Trefoil Cleat (Aluminium Cable Cleats) Prysmian 376TE08 Orion Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)

Prysmian 376TR09 Orion Trefoil Cleat (Aluminium Cable Cleats) Prysmian 376TE09 Orion Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)

Prysmian 376TR10 Orion Trefoil Cleat (Aluminium Cable Cleats) Prysmian 376TE10 Orion Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)

Prysmian 376TR11 Orion Trefoil Cleat (Aluminium Cable Cleats) Prysmian 376TE11 Orion Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)

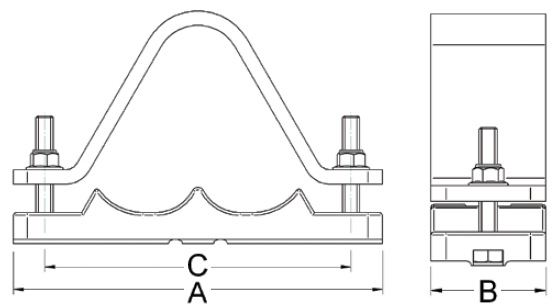

BICON-Prysmian-Aluminium-Orion-Cable-Cleat-376-TR-376-TE-Series

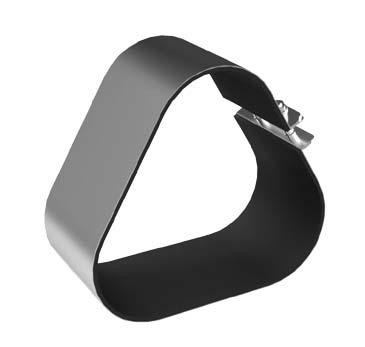

Intermediate Short Circuit Straps
Manufactured from 316L Stainless Steel to suit specific cable sizes (includes 3.5mm rubber liner).
BICON-Prysmian-Intermediate-Short-Circuit-Straps
  Clause Classifcation
Type  6.1.1  Composite
Operating Temperature  6.2  -40 °C to +105 °C
Impact Resistance 6.3  Heavy
Needle Flame 10.1  >120 secs

  Clause Classifcation
Resistance to Short Circuit  6.4.4 (2 short circuit)
(HV Cable used)
TR / TE 31kA rms, 80kA peak
SR / SE 63kA rms, 164kA peak
Corrosion  6.5.1  High, Outdoor - wet conditions (coating
required for marine locations)

*Technical data subject to change without notice
