Prysmian Aluminium Two Bolt Cable Cleat 370BA 370BB Series

Two Bolt Cleat (Aluminium)
370 Series

• Suitable for use with cable diameters 51 to 159mm.
• Manufactured from aluminium alloy.
• Two-piece, two fixing design.
• Can be double stacked on common fixings.
• Operating temperature -60°C to +105°C.
• Suitable for LV & HV cables.
• Can be used for all types of cable routes.
• Plain finish - for normal industrial areas or outdoor unpolluted areas.
• Epoxy coated versions available for harsh environments.
• Optional rubber liners available.
• Tested in accordance with BS EN 50368.
• LUL APR Product ID 1963.


LUL Approved, London Underground Approved



*Technical data subject to change without notice

Cable and Cleat Selection
Standard	Epoxy Coated
Prysmian 370BA10 Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB10 Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA11 Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB11 Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA12 Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB12 Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA13 Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB13 Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA14 Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB14 Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA15 Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB15 Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA16 Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB16 Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA17 Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB17 Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA18 Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB18 Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA19 Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB19 Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA30 Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB30 Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA31 Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB31 Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA32 Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB32 Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA33 Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB33 Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA34 Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB34 Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA35 Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB35 Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA36 Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB36 Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)

Design Numbers with the Suffic 'L' are fitted with a 5mm rubber lining

Cable and Cleat Selection
Standard	Epoxy Coated
Prysmian 370BA30L Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB30L Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA31L Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB31L Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA32L Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB32L Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA33L Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB33L Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA34L Two Bolt Aluminium Cable Cleat (2 Bolt Aluminium Cable Cleats)	Prysmian 370BB34L Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)
Prysmian 370BA35L Two Bolt Aluminium Cable Cleat	Prysmian 370BB35L Two Bolt Aluminium Cable Cleat (Epoxy Coated) (2 Bolt Aluminium Cable Cleats)

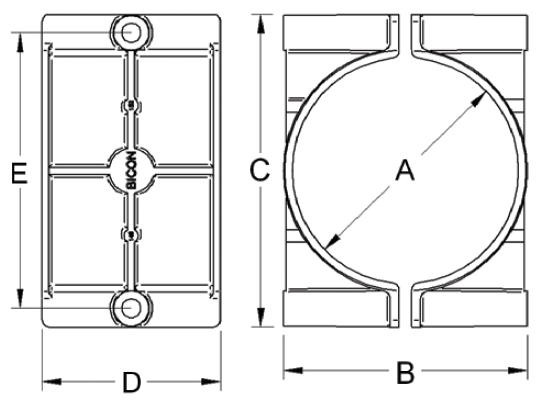

* 370BA/BB & BA*L cleats are supplied without fixing bolts which should be selected by using dimension ‘B' together with the thickness of the cable support arrangement

Performance data

Test Standard	EN 50368:2003
Type	6.1.1 Metallic
Impact Resistance	6.2.5 V. Heavy
Lateral Load	18.1 kN
Axial Load	11.4 -> 13.8 kN
Needle Flame	>120 secs
