BICON 382AA Series Ranger Cable Cleat | BICON Ranger Cleat

BICON-Prysmian-382AA-Series-Ranger-Cable-CleatRanger Cleat
382 Series


• Suitable for use with cable diameters of 13 to 76mm.
• Overlapping, self-adjusting ranges.
• Sunlight (UV) and weather resistant.
• Made from ABS which provides good oil and chemical resistance.
• Two piece, single bolt fixing.
• Double stacking facility.
• Operating temperature -20°C to +90°C.
• 'C' Section channel location aids fixing and stacking.
• Not designed for long vertical runs.


BICON-Prysmian-382AA-Series-Ranger-CleatPrysmian Group and BICON*Technical data subject to change without notice







Cleat Selection
BICON 382AA01 Ranger Cleat (Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

BICON 382AA02 Ranger Cleat (Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

BICON 382AA03 Ranger Cleat (Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

BICON 382AA04 Ranger Cleat (Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

BICON 382AA05 Ranger Cleat (Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

BICON 382AA06 Ranger Cleat (Non Metallic Cable Cleats | Non Magnetic Cable Cleats)


Method of Fixing
In all applications the cleat should be mounted on suitable M10 fixings. There is no need for any channel adaptor when mounting directly on to ‘C’ section channel.

SWL data based uponthe use of commerical grade 4.6 mild steel.

SWL = Safe Working Load.

FOS 2 = Values include a factor of safety of 2.

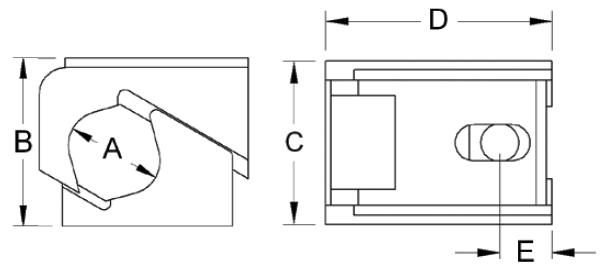

BICON-Prysmian-382-AA-Series-Ranger-Cable-Cleat

*Technical data subject to change without notice

BICON Single Way Cable Cleats | BICON Trefoil Cable Cleats | BICON Fire Resistant Cable Cleats | BICON Cable Cleat Accessories | BICON Cable Cleat Bespoke Solutions

Please check our our new BICON Cable Cleats website: Prysmian BICON Single Way Ranger Cleat 382AA Series (ABS Plastic)
