BICON Cast Iron Two Bolt Cable Cleat 370CG Series | Fire Resistant Cleats

Two Bolt Cleat (Cast Iron)
(Fire Resistant) 370 Series

• Suitable for use with cable diameters 51 - 89mm.
• Hot dip galvanised finish on cast iron.
• Two-piece, two fixing design.
• Can be double stacked on common fixings.
• Operating temperature -60°C to +105°C.
• Can withstand a 2 hour excursion to 1000°C.
• Can be used for all types of cable routes.
• Suitable for all environments.
• LUL APR Product ID 1964.
• Allows fire performance cables to meet the requirements of BS 6387:1994, BS 5839-1:2002, BS7346-6:2005 & BS8491:2008.

Recommended for Prysmian’s FP400 & FP600S cables


LUL Approved, London Underground Approved



*Technical data subject to change without notice

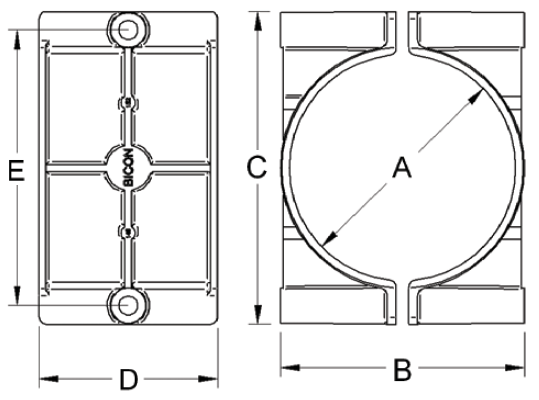

Cable and Cleat Selection

BICON 370CG10 Cast Iron Two Bolt Cable Cleat

BICON 370CG11 Cast Iron Two Bolt Cable Cleat

BICON 370CG12 Cast Iron Two Bolt Cable Cleat

BICON 370CG13 Cast Iron Two Bolt Cable Cleat

BICON 370CG14 Cast Iron Two Bolt Cable Cleat

BICON 370CG15 Cast Iron Two Bolt Cable Cleat

BICON 370CG16 Cast Iron Two Bolt Cable Cleat

Method of Fixing
In all applications the cleats should be mounted on suitable fixings, see table for appropriate size.

When mounting directly on channel, adaptor plate 380AG02 should be used - please see here

Performance data

Test Standard	EN 50368:2003
Type	6.1.1 Metallic
Impact Resistance	6.2.5 V. Heavy
Lateral Load	18.1 kN
Axial Load	11.4 kN
Needle Flame	>120 secs
