Prysmian Aluminium Orion Cable Cleat Shaped 376SR 376SE Series

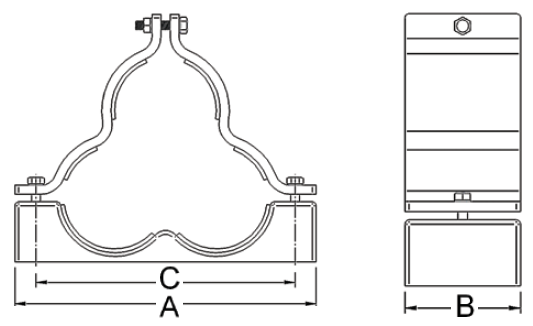

Orion Cleat - Shaped
376 Series














*Technical data subject to change without notice

Cable and Cleat Selection
Standard	Epoxy Coated
Prysmian 376SR05 Orion Shaped Trefoil Cleat (Aluminium Cable Cleats)	Prysmian 376SE05 Orion Shaped Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)
Prysmian 376SR06 Orion Shaped Trefoil Cleat (Aluminium Cable Cleats)	Prysmian 376SE06 Orion Shaped Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)
Prysmian 376SR07 Orion Shaped Trefoil Cleat (Aluminium Cable Cleats)	Prysmian 376SE07 Orion Shaped Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)
Prysmian 376SR08 Orion Shaped Trefoil Cleat (Aluminium Cable Cleats)	Prysmian 376SE08 Orion Shaped Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)
Prysmian 376SR09 Orion Shaped Trefoil Cleat (Aluminium Cable Cleats)	Prysmian 376SE09 Orion Shaped Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)
Prysmian 376SR10 Orion Shaped Trefoil Cleat (Aluminium Cable Cleats)	Prysmian 376SE10 Orion Shaped Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)
Prysmian 376SR11 Orion Shaped Trefoil Cleat (Aluminium Cable Cleats)	Prysmian 376SE11 Orion Shaped Trefoil Cleat (Epoxy Coated) (Aluminium Cable Cleats)

Performance data

	Clause	Classifcation
Type	6.1.1	Composite
Operating Temperature	6.2	-40 °C to +105 °C
Impact Resistance	6.3	Heavy
Needle Flame	10.1	>120 secs

	Clause	Classifcation
Resistance to Short Circuit	6.4.4 (2 short circuit) (HV Cable used)	TR / TE 31kA rms, 80kA peak SR / SE 63kA rms, 164kA peak
Corrosion	6.5.1	High, Outdoor - wet conditions (coating required for marine locations)
