BICON Afumex Telcleat 385 LSF LSOH Type

Afumex Telcleat
(LSOH) 385 Series

• Suitable for use with cable diameters 10 to 51mm.
• Manufactured from LSOH polymer.
• Designed for use with Afumex LSOH and Saffire OHLS cables.
• Overlapping self-adjusting ranges.
• Sunlight (UV) and weather resistant.
• One piece, single fixing design.
• Can be double stacked on a single fixing.
• Operating temperature -40ºC to +40ºC.
• Tested in accordance with BS EN 50368.
• LUL APR Product ID 1259.


LUL Approved, London Underground Approved



*Technical data subject to change without notice

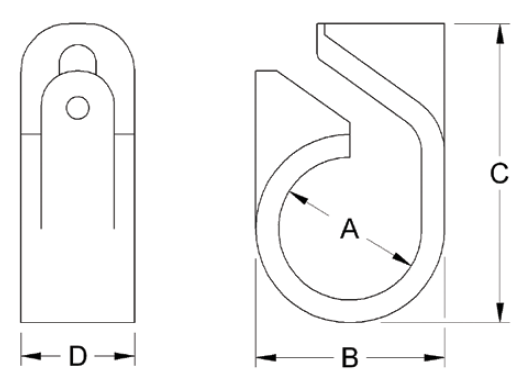

Cable and Cleat Selection

BICON 385LSF01 Afumex LSOH Telcleat (Telcleats) (Single Way Cable Cleats | Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

BICON 385LSF02 Afumex LSOH Telcleat (Telcleats) (Single Way Cable Cleats | Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

BICON 385LSF03 Afumex LSOH Telcleat (Telcleats) (Single Way Cable Cleats | Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

BICON 385LSF04 Afumex LSOH Telcleat (Telcleats) (Single Way Cable Cleats | Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

BICON 385LSF05 Afumex LSOH Telcleat (Telcleats) (Single Way Cable Cleats | Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

BICON 385LSF06 Afumex LSOH Telcleat (Telcleats) (Single Way Cable Cleats | Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

BICON 385LSF07 Afumex LSOH Telcleat (Telcleats) (Single Way Cable Cleats | Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

BICON 385LSF08 Afumex LSOH Telcleat (Telcleats) (Single Way Cable Cleats | Non Metallic Cable Cleats | Non Magnetic Cable Cleats)

Method of Fixing
The cleat is opened up and placed around the cable so that the end of the cleat containing the slot will be in contact with the mounting surface, except for the 385LSF01, which should be reversed to put the slot uppermost. In this case an M5 washer should be used to prevent the nut entering the slot of the cleat.

When mounting directly on channel section an adaptor plate should be used see here

Performance data

Test Standard	EN 50368:2003
Type	6.1.2 Non Metallic
Impact Resistance	6.2.4 Heavy -> 6.2.5 V. Heavy
Lateral Load	0.136 -> 0.781 kN
Axial Load	0.119 -> 1.024 kN
Needle Flame	>120 secs
